2CPV

MARINE VERTICAL TWO-STAGE CENTRIFUGAL PUMPS

Pumps of type family 2CPV are constructed as double stage vertical centrifugal pumps. They are typically used as emergency fire pumps, but can be used for any sea of fresh water application within its capacity range.

Capacity – Q (m3/h)

25 – 350 m3/h

Delivery head – H (m)
50 – 125 m

PUMP CONSTRUCTION FEATURES

inlet and outlet flanges at 180°

axially split pump casing

mechanical seal on shaft

Mechanical seal



DISTINCTIVE ATTRIBUTES

easily accessible pump rotor assembly, without removal of pump from pipeline or removal of electric motor

proven and reliable pump design

selfpriming with air ejector SUE 26 or mechanically driven vacuum pump VK20



BEARINGS

Ball bearings



COUPLING

Coupling with elastic coupling ES



MATERIALS

Casing – Bronze,

Ni-Al bronze,

Gray cast iron,

Nodular cast iron

Impeller – Bronze,

Ni-Al bronze,

Stainless steel

Shaft – Stainless steel

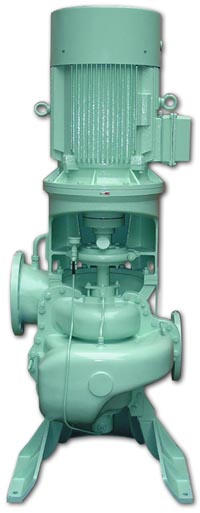

2CPV 320-200 with self priming air ejector SUE 26

mechanically driven vacuum pump VK2

CHARACTERISTICS CURVES

PUMP CROSSECTION

POS.
PART NAME
QTY.
111
SPIRAL CASING – UPPER
1
112
SPIRAL CASING – LOWER
1
113
WEAR RING
2
114
WEARING PLATE
1
115
CONNECTION FLANGE
1
117
PUMP PEDESTAL
1
120
BEARING SUPPORT
1
122
BEARING SLEEVE
1
135
MECHANICAL SEAL COVER
1
210
KEY
1
211
IMPELLER 1
1
212
IMPELLER 2
1
213
SHAFT
1



POS. PART NAME QTY.
214-218
SHAFT SLEEVES
1
219
BEARING
1
221
KEY
1
222
NUT
2
223
NUT
1
225
MECHANICAL SEAL
1
227
COUPLING DISC
1
311
EL. MOTOR PEDESTAL
1
312
STIRRUP
1
313
RING
1
316
BEARING COVER
1
318
BEARING COVER
1
323
LUBRICATOR
1
